BUTTERFLY VALVE
Butterfly valves are available in various configurations: We are brand offer a broad range of butterfly valves from general purpose through to high performance designs. Butterfly valves are known for their reliability, long service life and economic overall operating costs. Designs are optimised for ease of actuation. Our production size ranges from 2” to 72”, in pressure classes ANSI 125 – ANSI 600 and complimentary PN Ratings, subject to design selected.

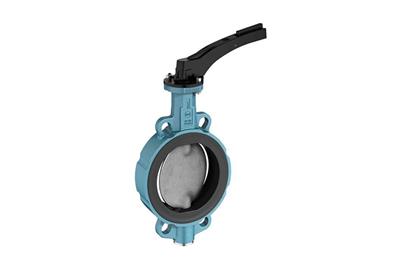

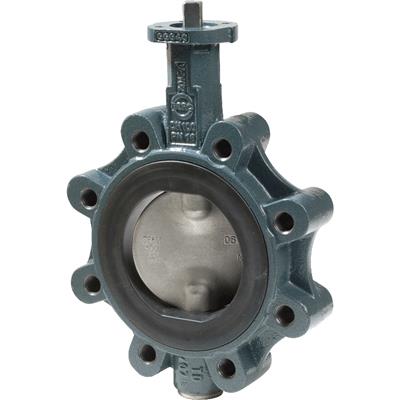

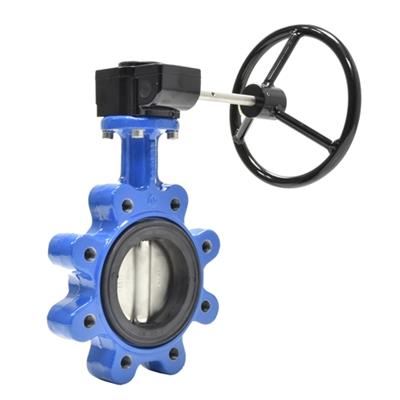

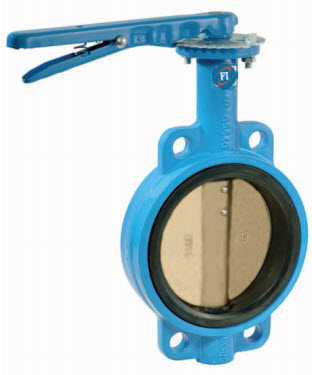

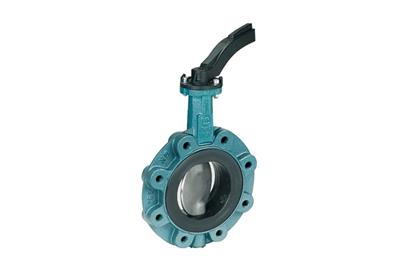

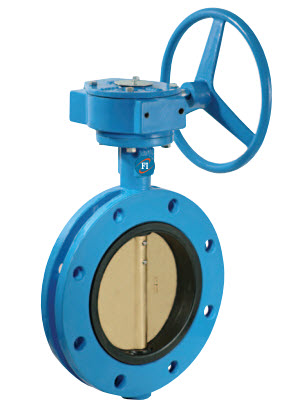

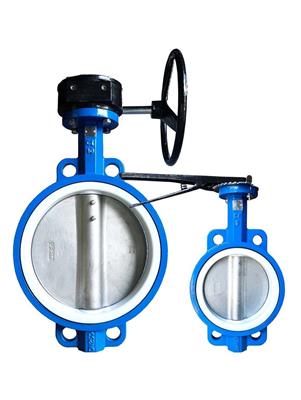

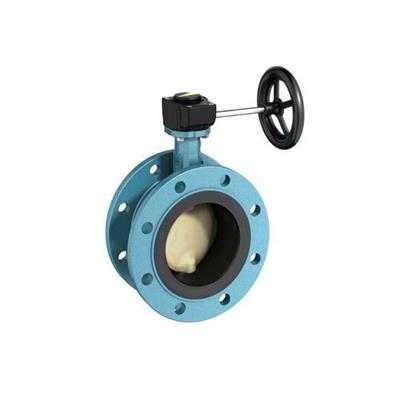

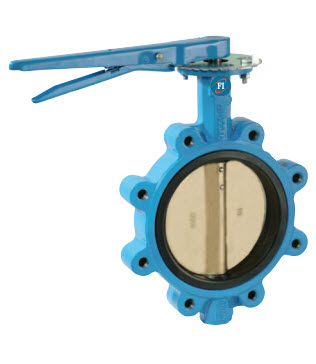

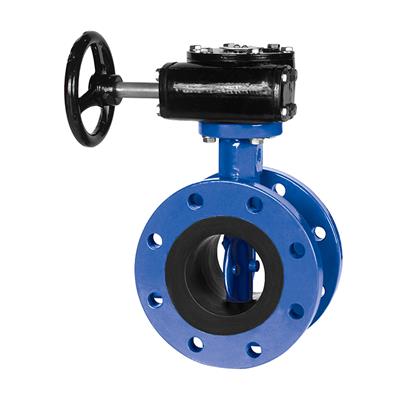

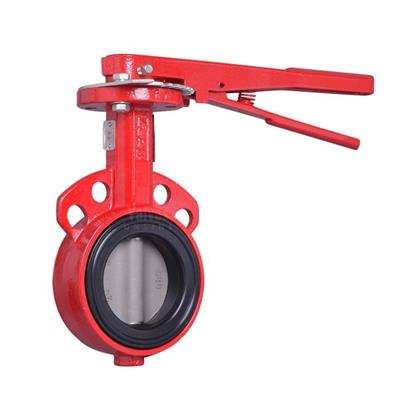

Concentric Resilient Seated Butterfly Valves are supplied in sizes ranging from 2” thru 48”, (larger on request), and Pressure Classes ANSI 125 – 150, BS/DIN PN 06, 10 & 16. JIS Standards are also available. Our Range includes Body Styles in Wafer, Lug & Double Flanged Designs, with standard materials including Cast Iron, Cast Carbon & Stainless Steels, along with Bronze Materials.

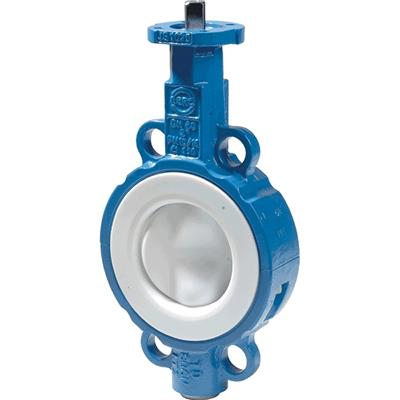

Butterfly Valve Design Options: Concentric, Lined, Wafer, Lugged, U-Section Flanged Body Options

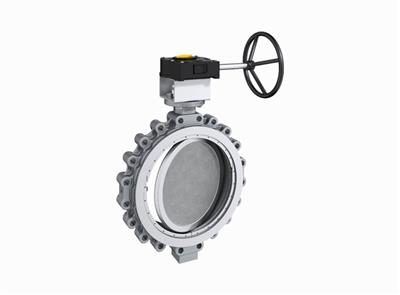

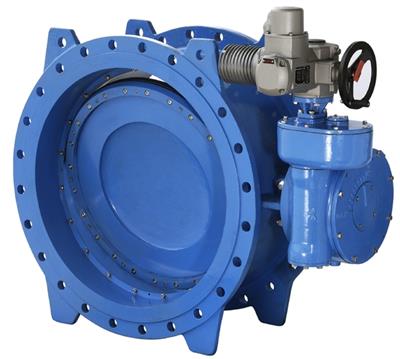

High Performance Double Offset, Firesafe. Non-Firesafe, Wafer, Lugged, U-Section Flanged Body Options
Technical Features:
Material
Brass, Bronze, Forge, Carbon Steel, Stainless Steel, Alloy, Duplex Steel
Special material requirements
API600 / API603 / API609 / ANSIB16.34 / BS1868 / BS1873 / A216 WCB / A217 / WC6 / CF8 / CF8M / CF3 / CN7M
Type

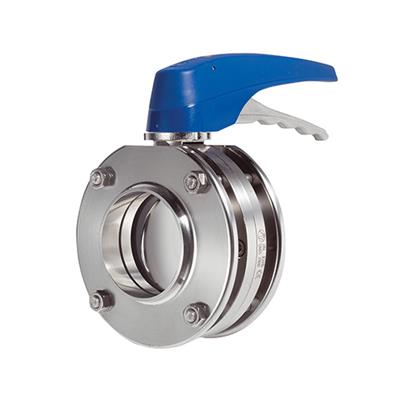

Wafer / Lug / Double Flange / Sanitary Valve
Pressure
CLASS UP to ANSI CLASS 2500
Size (inch)
11/4 ~ 60
Application
Seawater, Waste water, Chemical processing, etc.
